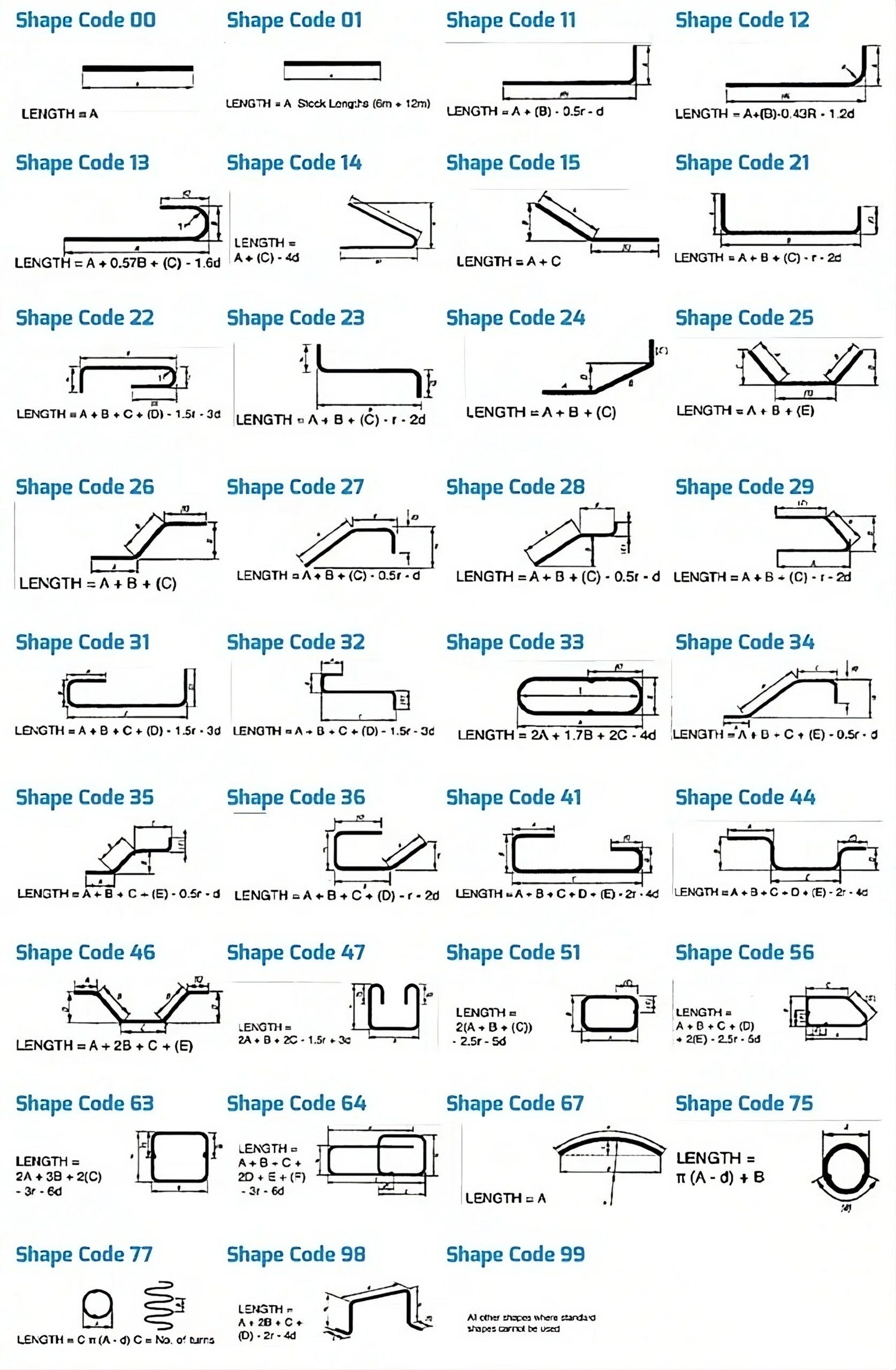

Reinforcing Shape Codes
For your convenience, we have illustrated the most common shape codes available. However, if you require a different shape code, please contact us to discuss your requirements.
Bar Bending Shapes
Bar Dimensions / Weights
| Bar Dimensions/Weights mm nominal size | Cross Sectional mm | Mass Per Meter Run (MM2) | Meter Per Tonne (kg) |
|---|---|---|---|
| 6* | 28.3 | 0.222 | 4504 |
| 8 | 50.3 | 0.395 | 2531 |
| 10 | 78.5 | 0.616 | 1623 |
| 12 | 113.1 | 0.888 | 1126 |
| 16 | 201.1 | 1.579 | 633 |
| 20 | 314.2 | 2.466 | 405 |
| 25 | 490.9 | 3.854 | 259 |
| 32 | 804.2 | 6.313 | 158 |
| 40 | 1256.6 | 9.864 | 101 |
Steel Fabricators & Suppliers Across London
B & S Steel Supply offer steel beams in London and across the UK as well as our structural steel products. We have built a reputation over the years for providing a high quality of service with speedy delivery.
We offer a variety of steel sizes and weights which are fit for every project and we even offer a fabrication service which means we can customise our beams to your needs. Steel beams are also sometimes referred to as:
Get a free no obligation quote
Send us the plans for your next project
For a fast, competitive quote
B & S Steel Supply offer steel beams in London and across the UK as well as our structural steel products. We have built a reputation over the years for providing a high quality of service with speedy delivery. We offer a variety of steel sizes and weights which are fit for every project and we even offer a fabrication service which means we can customise our beams to your needs. Steel beams are also sometimes referred to as:
